How To : Read an ETL trace with Network Monitor

Looking to capture Windows network traffic without Wireshark, if so you can use "netsh" to complete this action and if you have captured a network trace with this command below:

netsh trace start capture=yes tracefile=C:\temp\NetworkTrace.etl maxsize=6024 report=no

This will output a ETL file which is not compatible with Wireshark but can be read natively in Windows with the correct commands, the file will available when you stop the network trace with the command:

netsh trace stop

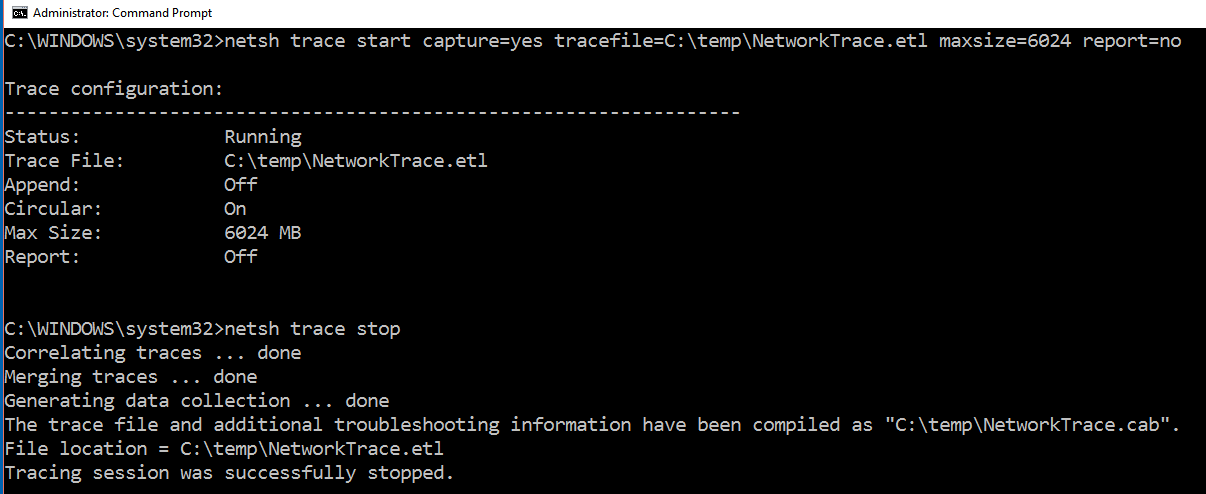

This should as an example look like this when the capture and process is complete and the file is ready:

You should then see a "cab" and an "etl" file in that folder as below, for this example we can discard the "cab" file this has no information about the network capture, we need to focus on the "etl" file:

Next, from the same command prompt use this command:

netmon

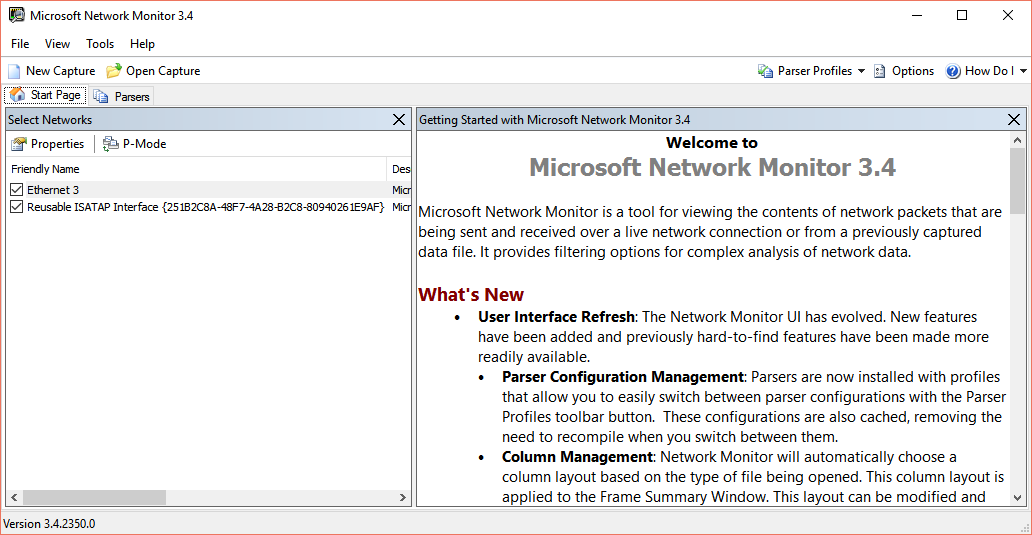

This will start the Microsoft Network Monitor that will look like this:

We then need to navigate to File > Open > Capture as below:

This will then open the "etl" file as we can see below, but this will not look very helpful for now, as below you can see "netevents" and other data about the packets but not really a Wireshark view:

Then we need to choose Tools > Options then choose Parser Profile from those options, then click Windows and then choose "Set as Active"

When this is applied it may take a couple of seconds but when its complete and you visit the network trace again you will notice a "Wireshark" style interface where you can now see the data in the packets with the "Source" and "Destination" and other variables which should look more familiar.
