Squid is a very well known and reliable open source proxy server, It can also be used to provide a very secure Internet connection that is well known for stability and reliability.
I have already written other article articles about installing squid, but this one is a more thorough article that kind of brings many of the concepts together and applies a bit of automation through bash scripting..
Squid is open-source
Squid, is the unsung hero, even in places where you do not expect it, As an open source solution, the only support you get is forum based which at times can be slow and it comes down to people’s spare time, However, as with many solutions that starters open source, many companies take products like this and charge corporations, a large amount of money to offer support that wraps around the community support.
Squid is Stable and Secure (depending on setup)
Squid over the years has become quite a stable solution and at the time of this blog, we are on version 3 - Obviously, because of its job, which is a Internet acceleration, cashing and proxy server it can be quite memory intensive, and it can also utilize the locally attached disk.
Squid in the N + x scenario
If you were looking to use a squid proxy server, I would highly recommend you have more than one in a load balancer configuration with affinity enabled, if you are looking to virtualize these servers, I would strongly recommend that all the memory allocated is directly assigned to the virtual machine and is not shared with other virtual machines, If it is virtual once again, I would recommend not sharing the hyper threading cause with other machines on the same host, And the final optimization I would do is to ensure you’re using a minimum of an SSD - I would not recommend you put the cash file on a slow, magnetic, spinning disk.
Physical v Virtual v Cloud
If you are looking at this guide, then you are obviously looking to deploy a squid server and the type of machine you have whether it be virtual or physical, or even in the cloud does not matter, Squid is more than capable of running in all those environments, but please remember N +1 - However, in the case of a proxy server, I would rather have N +3, but that is my personal decision.
Squid : Operating Systems
Now, let’s talk operating system, Squid can be run on windows, but I do not recommend you use Windows to run squid, Experience has taught me this in the past, As I said earlier, squid can be quite memory intensive and ironically, so can Windows depending on its configuration,.
Squid : Windows is a poor choice
Windows also suffers from requiring regular Windows updates that require a full reboot in order to apply that update. furthermore, some of those updates negatively affect the operating system system performance and functionality, and sometimes you can get a black screen where the server doesn’t boot at all, it occasionally Microsoft will release hotfixes that break their own functionality within Windows and your applications
You can also get you in a habit of rebooting Windows to solve problems with applications running on it, you should really be diagnosing why you’re rebooting windows, which is usually down to a memory leak or a resource drain.
Squid : If you must use Windows use Windows Core
If you do choose to run squid on Windows, please ensure you’re running Windows Core which while lacks a graphical user interface is actually quite a streamline and low footprint operating system, but you will need to be competent in Powershell and remote management to administer the server - The scripts I’ve also provided in this article will not work if you’re using Windows.
Squid really runs best of Linux, the distribution it runs on is not that important, however my go to distributions are CentOS and Kali, you can choose which ever distribution you’re happy with supporting - and before you ask Kali has more uses than just hacking and penetration testing.
Mission Control : Prepare for Ignition
Right, enough of the background and outlining what’s what, let’s get on with what we attempt to accomplish in this article, so simply put this is what we will go through:
- Install Squid if not installed
- Configure Squid with interactive script
- Apply filtering with DNSMarq/OpenDNS
- Monitor the Squid server with a script and email/HTML reporting via email
Prepare for Interactive questions for Squid installation
- Get cache admin contact
The cache admin contact is the email address of the person responsible for this Squid proxy.
Enter cache admin contact (e.g., webmaster@example.com): cache_admin@bear.local - Get trusted network ranges
Trusted network ranges are IP ranges that are allowed to use this proxy, addresses not on this list be get "Access Denied"
Enter trusted network ranges (one per line, press Ctrl+D when finished): 10.168.1.0/24 - Get additional safe ports
By default, this configuration allows ports 80 (HTTP) and 443 (HTTPS)."
Enter any additional safe ports you want to allow (space-separated, or press Enter for none): 80 443, 22 ,21 - Get Squid listening port
Squid needs a port to listen on for incoming connections, this is what clients will connect to.
Enter the port for Squid to listen on (press Enter for default 3128): 3129
If this command has run successfully, if you perform a directory listing in the directory where the file is located, you should notice it should now be a green in color as below:
Finally, we need to run the code which can be done with this command, and yes, this will definitely need to have the sudo prefix:
sudo ./optimize_squid.sh
This will then execute the script and will ask you the questions we spoke about earlier, which you will need to answer correctly, and then it will configure squid automatically and perform other system optimizations that include memory and file system, and squid performance operations that I have been using over the years, Once the script is complete, it should start the squid service and ask you to thoroughly check the configuration to make sure you’re happy with what’s been set.
Post-Flight : Quick Check
If you wish to perform a quick check on the squid service, you can simply run:
Note : you may need to substitute squid for squid2 or squid3 - depending on which version has been installed
systemctl status squid
This should then return the fact that squid is running with additional information that can be interesting to view.
Traffic Filtering Solutions - The Options
You have two options here, one of them is a free option and the other is a paid option. It goes without saying the paid option will be more effective at filtering threats, but the free option will block websites, just as effectively.
DNSMasq with dynamic block list
This solution uses DNSMasq and this particular software is a DNS cashing solution, which will work quite nicely with a dynamically generated block list that will block sites that are inappropriate for corporate environments, including malware, Adult content and other legally questionable sites you may not want loading at work.
This solution is fully scripted and will automatically set up a scheduled task using crontab To ensure the known block lists are regularly updated, and your squid server continues to dynamically block websites as they’re added from the list I’ve used in the past, However, if you have your own custom block list locations, you will manually need to add them to the script.
This automation will also crate a clean and minimalistic block page from HTML so your users will receive a professional block message rather than the default squid error message that’s not very friendly to the eye, but more on that later.
First, we need to create the script on the local file system so for that we will call once again on nano so let’s create a new file:
nano squid_blocklist.sh
Then we need to paste the contents of the scripture below, which will be in yellow into this file and then like we did before we need to save this file with CYRL + X then we need to remember to save the buffer and confirm the file name.
Script : squid_blocklist.sh
#!/bin/bash
# Ensure the script is run as root
if [ "$EUID" -ne 0 ]; then
echo "Please run as root"
exit
fi
# Install necessary packages
apt-get update
apt-get install -y squid dnsmasq wget
# Create a temporary directory
TEMP_DIR=$(mktemp -d)
cd "$TEMP_DIR"
# Download blocklists
echo "Downloading blocklists..."
wget -O malicious_sites.txt https://urlhaus.abuse.ch/downloads/text/
wget -O adult_sites.txt https://raw.githubusercontent.com/StevenBlack/hosts/master/alternates/porn/hosts
wget -O shalla_adult.tar.gz http://www.shallalist.de/Downloads/shallalist.tar.gz
wget -O openphish.txt https://openphish.com/feed.txt
wget -O dshield.txt https://www.dshield.org/feeds/suspiciousdomains_Low.txt
# Process blocklists
echo "Processing blocklists..."
cat malicious_sites.txt | grep -v "#" | awk '{print $2}' > blocked_domains.txt
cat adult_sites.txt | grep -v "#" | awk '{print $2}' >> blocked_domains.txt
tar -xzf shalla_adult.tar.gz
cat BL/porn/domains >> blocked_domains.txt
cat openphish.txt | awk -F/ '{print $3}' >> blocked_domains.txt
cat dshield.txt | grep -v "#" >> blocked_domains.txt
# Remove duplicates and sort
sort -u blocked_domains.txt -o /etc/squid/blocked_domains.txt
# Configure dnsmasq
cat << EOF > /etc/dnsmasq.conf
no-resolv
server=8.8.8.8
server=8.8.4.4
EOF
# Add blocked domains to dnsmasq
while read domain; do
echo "address=/$domain/127.0.0.1" >> /etc/dnsmasq.conf
done < /etc/squid/blocked_domains.txt
# Create custom error page
cat << EOF > /etc/squid/block_page.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Access Denied</title>
<style>
body {
font-family: Arial, sans-serif;
background-color: #f0f0f0;
display: flex;
justify-content: center;
align-items: center;
height: 100vh;
margin: 0;
}
.container {
background-color: white;
padding: 2rem;
border-radius: 10px;
box-shadow: 0 4px 6px rgba(0, 0, 0, 0.1);
text-align: center;
max-width: 600px;
}
h1 {
color: #d32f2f;
}
p {
color: #333;
line-height: 1.6;
}
.details {
background-color: #f5f5f5;
padding: 1rem;
border-radius: 5px;
margin-top: 1rem;
}
</style>
</head>
<body>
<div class="container">
<h1>Access Denied</h1>
<p>The website you are trying to access has been blocked due to policy restrictions.</p>
<div class="details">
<p><strong>URL:</strong> %u</p>
<p><strong>Category:</strong> %o</p>
<p><strong>Client IP:</strong> %a</p>
</div>
<p>If you believe this is an error, please contact your system administrator.</p>
</div>
</body>
</html>
EOF
# Configure Squid
cat << EOF > /etc/squid/squid.conf
http_port 3128
dns_nameservers 127.0.0.1
acl blocked_sites dstdomain "/etc/squid/blocked_domains.txt"
http_access deny blocked_sites
# Custom error page
deny_info ERR_ACCESS_DENIED blocked_sites
error_directory /etc/squid/
error_page 403 /etc/squid/block_page.html
http_access allow all
# Refresh pattern for better caching
refresh_pattern ^ftp: 1440 20% 10080
refresh_pattern ^gopher: 1440 0% 1440
refresh_pattern -i (/cgi-bin/|\?) 0 0% 0
refresh_pattern . 0 20% 4320
EOF
# Clean up
cd ~
rm -rf "$TEMP_DIR"
# Restart services
systemctl restart dnsmasq
systemctl restart squid
echo "DNS filtering, blocklists, and custom block page have been set up. Please configure your devices to use this server as a proxy."
# Create update script
cat << EOF > /usr/local/bin/update_blocklists.sh
#!/bin/bash
# Create a temporary directory
TEMP_DIR=\$(mktemp -d)
cd "\$TEMP_DIR"
# Download and process blocklists
wget -O malicious_sites.txt https://urlhaus.abuse.ch/downloads/text/
wget -O adult_sites.txt https://raw.githubusercontent.com/StevenBlack/hosts/master/alternates/porn/hosts
wget -O shalla_adult.tar.gz http://www.shallalist.de/Downloads/shallalist.tar.gz
wget -O openphish.txt https://openphish.com/feed.txt
wget -O dshield.txt https://www.dshield.org/feeds/suspiciousdomains_Low.txt
cat malicious_sites.txt | grep -v "#" | awk '{print \$2}' > blocked_domains.txt
cat adult_sites.txt | grep -v "#" | awk '{print \$2}' >> blocked_domains.txt
tar -xzf shalla_adult.tar.gz
cat BL/porn/domains >> blocked_domains.txt
cat openphish.txt | awk -F/ '{print \$3}' >> blocked_domains.txt
cat dshield.txt | grep -v "#" >> blocked_domains.txt
# Remove duplicates and sort
sort -u blocked_domains.txt -o /etc/squid/blocked_domains.txt
# Update dnsmasq configuration
sed -i '/^address=/d' /etc/dnsmasq.conf
while read domain; do
echo "address=/\$domain/127.0.0.1" >> /etc/dnsmasq.conf
done < /etc/squid/blocked_domains.txt
# Clean up and restart services
cd ~
rm -rf "\$TEMP_DIR"
systemctl restart dnsmasq
systemctl restart squid
echo "Blocklists updated successfully."
EOF
chmod +x /usr/local/bin/update_blocklists.sh
# Set up cron job to update blocklists weekly
(crontab -l 2>/dev/null; echo "0 1 * * 0 /usr/local/bin/update_blocklists.sh") | crontab -
echo "Setup complete. A cron job has been set to update blocklists weekly."
Once the contents of the script above are pasted into the file and it’s been saved we need to make this file executable, which can be done with this command as before in the set up guide:
chmod +X squid_blocklist.sh
Then finally, we need to execute the command as an elevated user with this command:
sudo ./squid_blocklist.sh
This will then execute the script that will go off to the Internet download the common block list files format them correctly install the required components and then integrate those components within squid all automatically, It will also then set up a schedule task, so this happens weekly so you don’t need to worry about running the script again.
If you remember earlier, I mentioned I would go over the error message, When I blocked website is request requested by the user and squid attempts to serve this website rather than display the website it will display the custom HML that looks like this:
Remember, If you were using the free solution, squid will only block websites when they are added to these custom block lists that are parsed Into the running configuration block list, so do not expect quick responses when there are security, incidents or new websites because the source need to update their list before squid will start blocking it.
OpenDNS filtering and protection
This particular filtering solution requires a paid for openDNS business account, if you do not have a business account, this will not work for a corporation, However, if you are using this at home, you are more than welcome to follow this with an open DNS home account where you have registered.
You will need access to the openDNS dashboard to complete any of these steps and then link that configuration to the squid proxy server(s)
Obtain External IP Address
The first action on the list is to familiarize yourself with your external IP address, more specifically, your external IPv4 address - Address network this is usually the address on the public side of your NAT translation rule.
Obtain External from IP from public facing NAT configuration
NAT stands for network address translation and its a way of from a public IP address getting to an internal service on specified ports using that one Internet facing address, that means if you are using a 10.x network internally, it will not be this address.
The correct external IP is critical for the solution to work and it should also be a static address that will not change if you only have dynamic available you will have to handle that a different way by publishing a dynamic DNS updating record known as DDNS
Obtain your External IP
If you wish to find out what your IP address is externally and you’re not sure what it is then you can simply visit this website:
When this website loads, you’re interested in the IPv4 address, you can see an example below of the IPv4 address it is circled in green:
Note : This is my dynamically assigned IP address that changes quite frequently, which is why there is really no need to redact it, IP address is on mobile networks are probably shared with quite a few other mobile phones.
https://dashboard.opendns.com/
If you already have an account, you can proceed to login with that account and then we can move onto to configuring OpenDNS Networking settings and filtering settings before we configure squid to use them.
When you are successfully logged in, you should see a screen similar to this one, We are interested in clicking on the settings tab which is in the orange bar towards the top of the website.
That will then take you to the screen showing above where you get the option to add a new network and it needs that IPv4 address we discovered or obtained earlier, enter that into the boxes (as you can see above)
When you click the ad network button, you will be prompted for a network name, Give that a meaningful name, here I have used “Blog Demo” - you will also notice another network here, but don’t worry about that that’s my personal network.
OpenDNS well, then confirm the network has been added with a nice green banner, and you should see it under my networks underneath the ad network section as you can see from above.
Note : if you get an error here saying this network cannot be added because it already exists. It means the external IP address you’ve given open DNS is already been used with another person subscription and you can only have one external IP address registered to one subscription.

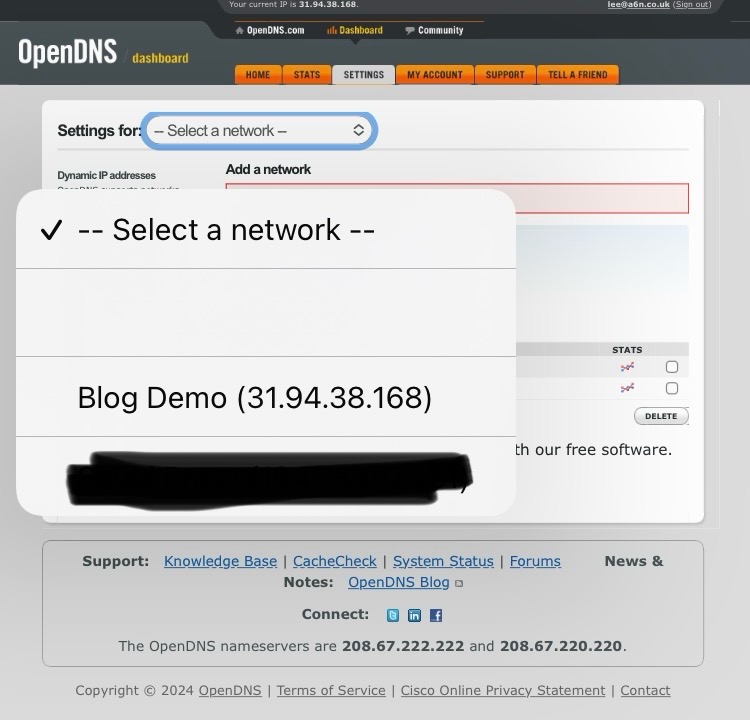

Now we need to configure the settings for that new network you just created, so from the top of the screen, find the “settings for” section click on the drop-down box and choose the network you just created as above.
That will immediately drop you into the web filtering settings, which by default will be set to “none” this means your filter is essentially disabled so it doesn’t do anything so that’s the first thing we need to change, I have chosen for high protection, which will give you a description of what it belongs because if you wish to do more granular, you can always choose the customize button and manually select the categories you wish to block.
Once you have made your protection level and category selection, don’t forget to save your options. otherwise they won’t apply.
Then we move onto the security settings here you will notice that all the boxes are ticked excluding one, The one that is not ticked is the “Block internal IP addresses” I would highly recommend you block this because it will protect you from DNS rebind attacks, once you have checked the box, don’t forget to save those options.
Next up, is the customization, This is where you can add a company logo and change the message on the block page, I am more than happy with the default block page so I have no reason to update this or change it so I will leave the default settings.

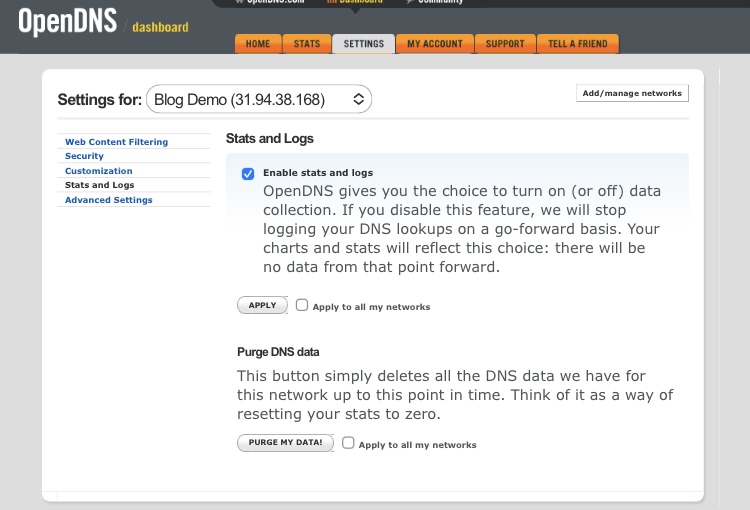

Next up is this statistics and logging, By default for some reason, this is disabled, I think it might have something to do with protecting your privacy from logging, but the fact that you’re giving all your DNS traffic to OpenDNS without being able to look at what’s going on sounds a little foolish to me, So I always enable statistics and logging so you can look later on at reports to do with website websites allowed, website websites visited, website blocked, type of records requested.
Finally, once you’ve got to this position, you have successfully configured the OpenDNS side of the configuration now you need to tell squid to use this protection by updating the name servers that it uses, remember, this will need to be done on all squid service as the default DNS resolver will be set by the operating system.
Configure Squid to use the new DNS servers
We now have to locate the squid configuration file so we can edit it, There is a high chance the configuration file will be in one of two locations, depending on the version that’s being installed by the script, these are those two locations:
SQUID_CONF="/etc/squid/squid.conf"
SQUID_CONF="/etc/squid3/squid.conf"
If you are not sure, which one then run the command below, you may or may not need to append the three on the end of the command:
systemctl status squid(3)
Now we need to edit that file with the command as the elevated user:
sudo nano /etc/squid/squid.conf
When you run this command, you should see the active configuration of squid on your screen, you then need to find an empty line and add the following string to that file:
dns_nameserver 208.67.220.220 208.67.222.222
You will need to save that file and return back to the shell, then you will need to restart squid for those settings to take effect:
systemctl restart squid
This completes the DNS filtering setup for your squid proxy servers, remember, you need to add this line to each proxy server that’s running squid.
OpenDNS FamilyShield
If you are not interested in paying for OpenDNS But you still wish to leverage some of the protection than the other option is you can also use family shield, this gives you zero control on categories and security and customization, but it does allow you to quite easily filter, adult content and other catogories deemed as not suitable for work.
Warning : if you opt for this method, you have zero control over, allowing or blocking websites and changing categorization as it’s a generic DNS filtering service that is more designed for the personal setting
This method does not require a paid account and can simply be enforced by adding the following configuration line to your squid configuration and then restarting the service:
dns_nameservers 208.67.220.123 208.67.222.123
Quad9 Web Filtering
This is not a good solution for the security minded that is free for everybody to use and like with family shield you get no control about what is blocked you are leaving back to the company that provides DNS service but this is quite a reliable service. Albeit there is only one DNS server in this configuration.
While it might be highly available, I always like a backup dearness server because sometimes infrastructure has problems, not foresee and with no DNS you have no Internet - I am sure that this address will be highly low, balanced and resilient, but I would still rather specify two addresses as it’s not very N+1 if you have a single address.
dns_nameservers 9.9.9.9
Squid Moniroring

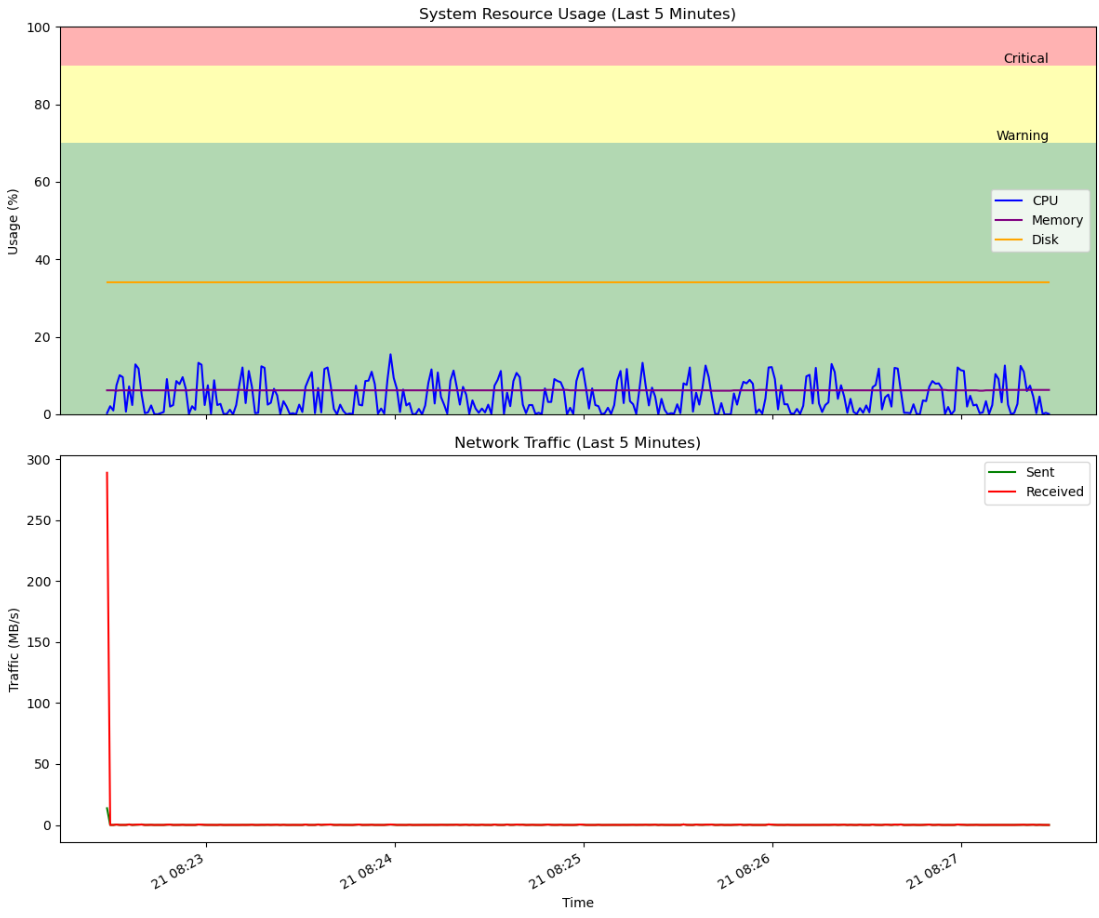

If you’ve made it to this point, you’ve set up squid or technically the script has and you set up your DNS filtering with whatever method you decided to use and now you need to monitor your installation.
This is arguably one of the most important parts of the solution as you need to know when it’s not healthy before the end users notice.
This is another script I have developed over the years That focuses on all the variables you need to make and assessment as to whether squid is in a healthy state or not, videos development I have now added a health card at the top that will even give you a healthy or unhealthy status, green or red respectively.
Its all about the CPU, RAM and Disk (and the Squid processes)
The script primarily focuses on system variables including CPU and memory and it also reports on squid specific processes, memory, and CPU utilization - however, I can have the house card at the top for a quick easy to look at glass as to whether it’s healthy or you need to read more of the report to see why it’s not healthy.
The image below shows you the overview of what the report looks like when it’s in your inbox:
I have also included all the key processes for all the users that are utilize the server so the top report shows the root account, then you will see from the image below it also reports local accounts and the squid process as well, not to mention the network connection health that focuses connections that have been detected, which would be handy if you suspect TCP exhaustion.
#!/bin/bash
# Directory where the script is executed
REPORT_DIR=$(pwd)
# HTML report file path
HTML_FILE="${REPORT_DIR}/squid_stats_report_$(date +%Y-%m-%d).html"
# Email settings
SENDER="squid@a6n.co.uk"
RECIPIENT="lee@a6n.co.uk "
SUBJECT="Squid Process Statistics Report - $(date +%Y-%m-%d)"
SMTP_SERVER="smtp.bear.local"
SMTP_PORT="25"
# Function to start the HTML file and add a title
start_html_report() {
echo "<html>" > $HTML_FILE
echo "<head><title>Detailed Squid Process Statistics - $(date)</title>" >> $HTML_FILE
echo "<style>
body { font-family: Arial, sans-serif; margin: 20px; }
h1 { color: #4CAF50; }
h2 { color: #2196F3; }
h3 { color: #FFC107; }
pre { background-color: #f4f4f4; padding: 10px; border-radius: 5px; }
p.status { font-weight: bold; color: #f44336; }
.card { border-radius: 10px; padding: 20px; margin-bottom: 20px; text-align: center; font-size: 20px; }
.green-card { background-color: #4CAF50; color: white; }
.red-card { background-color: #f44336; color: white; }
</style>" >> $HTML_FILE
echo "</head>" >> $HTML_FILE
echo "<body>" >> $HTML_FILE
echo "<h1>Squid Process Statistics Report - $(date)</h1>" >> $HTML_FILE
}
# Function to display the health card at the top of the report
display_health_card() {
if [ "$1" = "healthy" ]; then
echo "<div class='card green-card'>Service Status: Healthy</div>" >> $HTML_FILE
else
echo "<div class='card red-card'>Service Status: Unhealthy</div>" >> $HTML_FILE
fi
}
# Function to end the HTML file
end_html_report() {
echo "</body>" >> $HTML_FILE
echo "</html>" >> $HTML_FILE
}
# Function to capture detailed Squid process statistics
capture_squid_stats_html() {
# Calculate health status
local health_status="unhealthy"
# Get all PIDs for Squid processes
SQUID_PIDS=$(pgrep squid)
if [ -n "$SQUID_PIDS" ]; then
# Number of open and closed network connections
OPEN_CONNECTIONS=$(ss -s | grep 'TCP:' | awk '{print $4}')
CLOSED_CONNECTIONS=$(ss -s | grep 'TCP:' | awk '{print $6}')
# Strip any non-numeric characters from the open connections value
OPEN_CONNECTIONS_CLEAN=$(echo "$OPEN_CONNECTIONS" | sed 's/[^0-9]//g')
# If there are open connections, mark the service as healthy
if [ "$OPEN_CONNECTIONS_CLEAN" -gt 0 ]; then
health_status="healthy"
fi
# Add health card at the top after determining the status
display_health_card "$health_status"
# Capture Squid statistics
echo "<h2>Squid Process Details</h2>" >> $HTML_FILE
# CPU and memory usage of Squid (handles multiple PIDs)
echo "<h3>CPU and Memory Usage:</h3>" >> $HTML_FILE
for PID in $SQUID_PIDS; do
echo "<p><strong>PID $PID:</strong></p>" >> $HTML_FILE
echo "<pre>$(ps -p $PID -o pid,ppid,cmd,%mem,%cpu --sort=-%mem)</pre>" >> $HTML_FILE
done
# More detailed stats using top for each PID
echo "<h3>Detailed Process Statistics (from top):</h3>" >> $HTML_FILE
for PID in $SQUID_PIDS; do
echo "<p><strong>PID $PID:</strong></p>" >> $HTML_FILE
echo "<pre>$(top -b -n 1 -p $PID | head -n 15)</pre>" >> $HTML_FILE
done
# Network statistics
echo "<h3>Network Statistics (Open and Closed Connections):</h3>" >> $HTML_FILE
echo "<p><strong>Open Connections:</strong> $OPEN_CONNECTIONS_CLEAN</p>" >> $HTML_FILE
echo "<p><strong>Closed Connections:</strong> $CLOSED_CONNECTIONS</p>" >> $HTML_FILE
else
echo "<p class='status'>Status: Squid is not running.</p>" >> $HTML_FILE
fi
}
# Function to send email
send_email() {
(
echo "From: $SENDER"
echo "To: $RECIPIENT"
echo "Subject: $SUBJECT"
echo "MIME-Version: 1.0"
echo "Content-Type: text/html"
echo ""
cat $HTML_FILE
) | sendmail -t -S "$SMTP_SERVER:$SMTP_PORT" -f "$SENDER"
}
# Start HTML report
start_html_report
# Capture Squid statistics and display health card
capture_squid_stats_html
# End HTML report
end_html_report
# Send email
send_email
# Clean up the HTML file
rm $HTML_FILE
System Monitoring with Charts (in colour Zones)
If you wish to get a report with nice colourful charts then you can wither do this for the server or the servers including squid statistics, I would probably recommend that system charting is more accurate and informative that includes squid data inside that chart.
Note : You will need to install the require pre-requisite components for this to run which can be done with this command:
pip install psutil matplotlib
Smaller Chart Sample?
The script below will give you 24 hours of data and sampling every 15 seconds, however if you are looking for a 5 minute sample then update these variables to get a 5 minute chart not a 24 hour chart:
# Constants
SAMPLE_INTERVAL = 1 # seconds
MONITORING_DURATION = 5 * 60 # 5 minutes in seconds
Script : squid_systemperformance.sh
#!/usr/bin/env python3
import time
import datetime
from collections import deque
# Check for required modules
required_modules = ['psutil', 'matplotlib']
missing_modules = []
for module in required_modules:
try:
__import__(module)
except ImportError:
missing_modules.append(module)
if missing_modules:
print("Error: The following required modules are missing:")
for module in missing_modules:
print(f" - {module}")
print("\nPlease install them using pip:")
print(f"pip install {' '.join(missing_modules)}")
exit(1)
# If all modules are available, import them
import psutil
import matplotlib.pyplot as plt
# Constants
SAMPLE_INTERVAL = 15 # seconds
CHART_DURATION = 24 * 60 * 60 # 24 hours in seconds
MAX_SAMPLES = CHART_DURATION // SAMPLE_INTERVAL
def get_system_metrics():
cpu_percent = psutil.cpu_percent(interval=1)
mem = psutil.virtual_memory()
disk = psutil.disk_usage('/')
net_io = psutil.net_io_counters()
return cpu_percent, mem.percent, disk.percent, net_io.bytes_sent, net_io.bytes_recv
def plot_metrics(timestamps, cpu_history, mem_history, disk_history, net_send_history, net_recv_history):
fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(20, 15))
# Define thresholds
warning_threshold = 70
critical_threshold = 90
# Plot CPU, Memory, and Disk Usage
ax1.axhspan(0, warning_threshold, facecolor='green', alpha=0.3)
ax1.axhspan(warning_threshold, critical_threshold, facecolor='yellow', alpha=0.3)
ax1.axhspan(critical_threshold, 100, facecolor='red', alpha=0.3)
ax1.plot(timestamps, cpu_history, label='CPU', color='blue')
ax1.plot(timestamps, mem_history, label='Memory', color='purple')
ax1.plot(timestamps, disk_history, label='Disk', color='orange')
ax1.set_title('System Resource Usage (Last 24 Hours)')
ax1.set_xlabel('Time')
ax1.set_ylabel('Usage (%)')
ax1.legend()
ax1.set_ylim(0, 100)
# Add threshold labels
ax1.text(timestamps[-1], warning_threshold, 'Warning', verticalalignment='bottom', horizontalalignment='right')
ax1.text(timestamps[-1], critical_threshold, 'Critical', verticalalignment='bottom', horizontalalignment='right')
# Plot Network Traffic
ax2.plot(timestamps, net_send_history, label='Sent', color='green')
ax2.plot(timestamps, net_recv_history, label='Received', color='red')
ax2.set_title('Network Traffic (Last 24 Hours)')
ax2.set_xlabel('Time')
ax2.set_ylabel('Traffic (MB/s)')
ax2.legend()
# Format x-axis to show time
fig.autofmt_xdate()
plt.tight_layout()
plt.savefig('server_performance_24h.png')
plt.close()
def main():
cpu_history = deque(maxlen=MAX_SAMPLES)
mem_history = deque(maxlen=MAX_SAMPLES)
disk_history = deque(maxlen=MAX_SAMPLES)
net_send_history = deque(maxlen=MAX_SAMPLES)
net_recv_history = deque(maxlen=MAX_SAMPLES)
timestamps = deque(maxlen=MAX_SAMPLES)
print("Server Performance Monitoring Started. Press Ctrl+C to exit.")
print(f"Collecting data every {SAMPLE_INTERVAL} seconds for a 24-hour chart...")
last_report_time = time.time()
last_net_io = psutil.net_io_counters()
last_time = time.time()
try:
while True:
start_time = time.time()
cpu, mem, disk, net_sent, net_recv = get_system_metrics()
# Calculate network speed
time_elapsed = start_time - last_time
net_send_speed = (net_sent - last_net_io.bytes_sent) / time_elapsed / 1_000_000 # MB/s
net_recv_speed = (net_recv - last_net_io.bytes_recv) / time_elapsed / 1_000_000 # MB/s
cpu_history.append(cpu)
mem_history.append(mem)
disk_history.append(disk)
net_send_history.append(net_send_speed)
net_recv_history.append(net_recv_speed)
timestamps.append(datetime.datetime.now())
# Generate report and plot every hour
if time.time() - last_report_time >= 3600: # 3600 seconds = 1 hour
print("\n--- Hourly Report ---")
print(f"Time: {datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S')}")
print(f"Current CPU Usage: {cpu:.2f}%")
print(f"Current Memory Usage: {mem:.2f}%")
print(f"Current Disk Usage: {disk:.2f}%")
print(f"Current Network Send Speed: {net_send_speed:.2f} MB/s")
print(f"Current Network Receive Speed: {net_recv_speed:.2f} MB/s")
plot_metrics(timestamps, cpu_history, mem_history, disk_history, net_send_history, net_recv_history)
print("\n24-hour chart updated: server_performance_24h.png")
last_report_time = time.time()
last_net_io = psutil.net_io_counters()
last_time = start_time
# Sleep for the remainder of the interval
time_elapsed = time.time() - start_time
time.sleep(max(SAMPLE_INTERVAL - time_elapsed, 0))
except KeyboardInterrupt:
print("\nMonitoring stopped.")
if __name__ == "__main__":
main()
You will then get a chart that looks like this, you will get system performance on the top and network utilisation on the bottom, with the color bandings that make it very easy to assess the server health., this is a maintenance node so the traffic is low.
Viewpoint : Human Interaction
This particular section could be a bit controversial for many people, Squid is a product that’s pretty self-sufficient and once it’s running, it stays running until it’s interfered with by human commands or the server restarts and it hasn’t been enabled probably to restart on system reboot.
If you find on a reboot, this happens to you outside of following this guide then you simply need to configure squid to restart on a reboot, which can be accomplished with the following command:
systemctl restart squid
This command will then ask you to authenticate with a privileged account and then when you reboot, your server, squid will automatically start.
That being said, if it’s been set up correctly to start with, it should not need people to log into it daily to check variables and system services. You have a script that does that weekly which you I’m not sure about weekly. You can quite easily change that to a daily task with crontab.
If you do change the monitoring to a daily task, please do not fall into the trap of human confirmation bias where you regularly see an email that’s Green so when the email is not Green, you automatically assume everything’s OK and don’t do any investigation - This is the reason I like weekly reports.
Limit the people with shell access!
I would also recommend that you have a limited set of people that can login into your squid servers via Shell and manage them, you don’t particularly need to worry about the people that like a graphical user interface because squid doesn’t have one so you need to learn shell otherwise you can’t manage with whatsoever.
Graphical user interfaces (GUI) are a must?
If you are only able to administer the servers by clicking on pictures with a graphical user interface, then that is a shame because you have limited yourself severely in what data you can get from services and applications running on those service as there is only so much information you can put in this case on a website or in the graphical experience section of the operating system.
If the option of a graphical management interface is priority here then I would highly suggest you purchase an Apple device that runs macOS.
A Mac mini or Mac mini studio would be the perfect device, if you have high work loads, you may wish to go with the Mac mini studio as it has more resources available to it, air more accurately you can specify with more resources.
If you wish to go down this route, you simply need to install macOS and then get an application called Squidman.
https://squidman.net/squidman/
If you navigate to this page, it’s regularly updated and it’s a very stable product that gives you a interface that you can manage with a mouse and a keyboard obviously.
That concludes this guide and the squid installing and monitoring and on-going maintenance.
